应用范围
压力:≤1.0MPa
温度:-20~150℃
线速度:≤13m/sec
用途:
适用于清水泵、污水泵、潜水泵、化工泵等设备，用于输送油水及弱腐蚀性溶液。

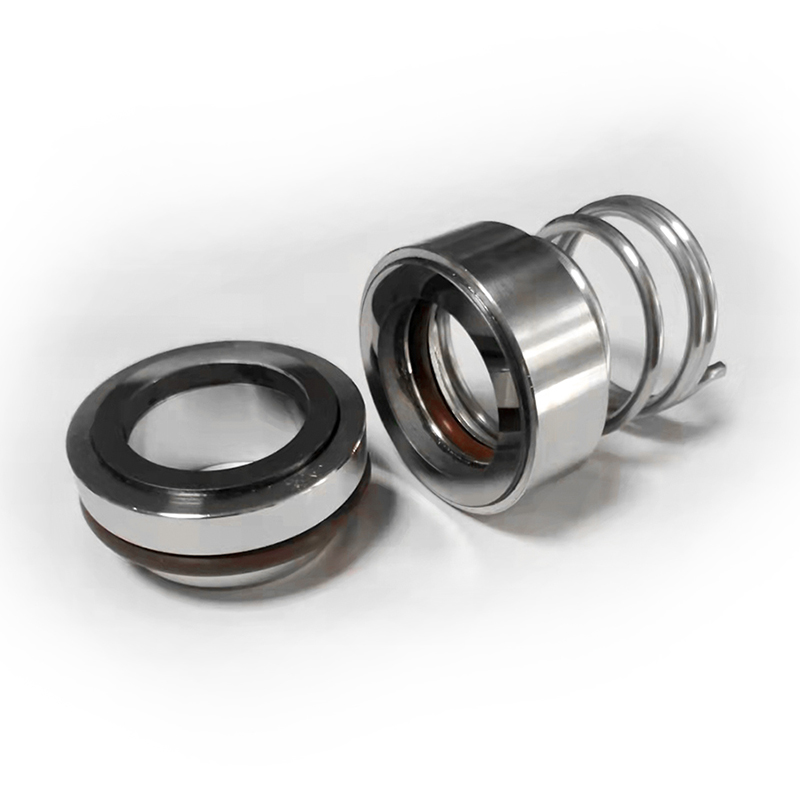

结构特点
1.单端面、非平衡型、锥形弹簧钩传动结构，弹簧的另一端并圈锁定在轴上，弹簧的旋向与泵轴的旋向有关。
2.结构简单，性能稳定，可靠性好。

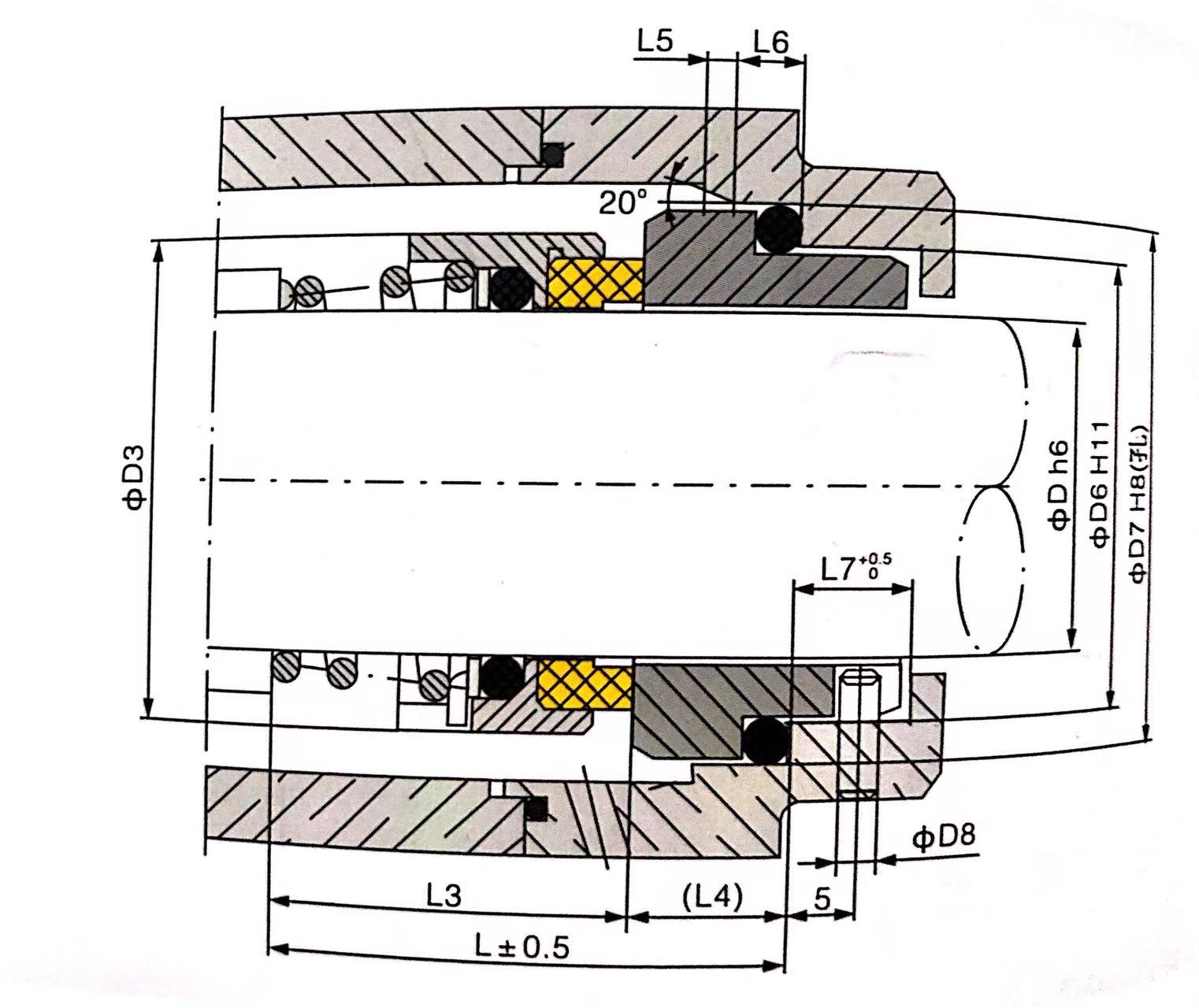

型号MODEL | D | D3 | D6 | D7 | D8 | L | L3 | L4 | L5 | L6 | L7 |
JD120C-16 | 16 | 26 | 23 | 27 | 3 | 28.0 | 18.0 | 10.0 | 1.5 | 4 | 8.5 |
JD120C-17 | 17 | 26 | 23 | 27 | 3 | 28.0 | 18.0 | 10.0 | 1.5 | 4 | 8.5 |
JD120C-18 | 18 | 29 | 27 | 33 | 3 | 31.0 | 19.5 | 11.5 | 2.0 | 5 | 9.0 |
JD120C-19 | 19 | 30 | 27 | 33 | 3 | 31.0 | 19.5 | 11.5 | 2.0 | 5 | 9.0 |
JD120C-20 | 20 | 31 | 29 | 35 | 3 | 33.5 | 22.0 | 11.5 | 2.0 | 5 | 9.0 |
JD120C-22 | 22 | 33 | 31 | 37 | 3 | 33.0 | 21.5 | 11.5 | 2.0 | 5 | 9.0 |
JD120C-24 | 24 | 35 | 33 | 39 | 3 | 35.0 | 23.5 | 11.5 | 2.0 | 5 | 9.0 |
JD120C-25 | 25 | 36 | 34 | 40 | 3 | 38.0 | 26.5 | 11.5 | 2.0 | 5 | 9.0 |
JD120C-26 | 26 | 37 | 34 | 40 | 3 | 38.0 | 26.5 | 11.5 | 2.0 | 5 | 9.0 |
JD120C-28 | 28 | 40 | 37 | 43 | 3 | 38.0 | 26.5 | 11.5 | 2.0 | 5 | 9.0 |
JD120C-30 | 30 | 43 | 39 | 45 | 3 | 38.0 | 26.5 | 11.5 | 2.0 | 5 | 9.0 |
JD120C-32 | 32 | 46 | 42 | 48 | 3 | 40.0 | 28.5 | 11.5 | 2.0 | 5 | 9.0 |
JD120C-35 | 35 | 49 | 44 | 50 | 3 | 40.0 | 28.5 | 11.5 | 2.0 | 5 | 9.0 |
JD120C-38 | 38 | 53 | 49 | 56 | 4 | 47.5 | 33.5 | 14.0 | 2.0 | 6 | 9.0 |
JD120C-40 | 40 | 56 | 51 | 58 | 4 | 50.0 | 36.0 | 14.0 | 2.0 | 6 | 9.0 |
JD120C-43 | 43 | 59 | 54 | 61 | 4 | 52.5 | 38.5 | 14.0 | 2.0 | 6 | 9.0 |
JD120C-45 | 45 | 61 | 56 | 63 | 4 | 53.5 | 39.5 | 14.0 | 2.0 | 6 | 9.0 |
JD120C-48 | 48 | 64 | 59 | 66 | 4 | 60.0 | 46.0 | 14.0 | 2.0 | 6 | 9.0 |
JD120C-50 | 50 | 66 | 62 | 70 | 4 | 60.0 | 45.0 | 15.0 | 2.5 | 6 | 9.0 |
JD10C-60 | 60 | 78 | 72 | 80 | 4 | 70.0 | 55.0 | 15.0 | 2.5 | 6 | 9.0 |
