应用范围
温度 :-40℃~150℃
压力 :≤0.7MPa
线速度: ≤13m/sec
用途:旋转类泵、搅拌器和其它旋转轴设备，用于油、水及其它弱腐蚀性液体
材料
动环(陶瓷/碳化硅/碳化钨)
静环(碳石墨/碳化硅/碳化钨)
辅助密封(丁腈橡胶/三元乙丙橡胶/氟橡胶)
弹簧及其它零件(304不锈钢)

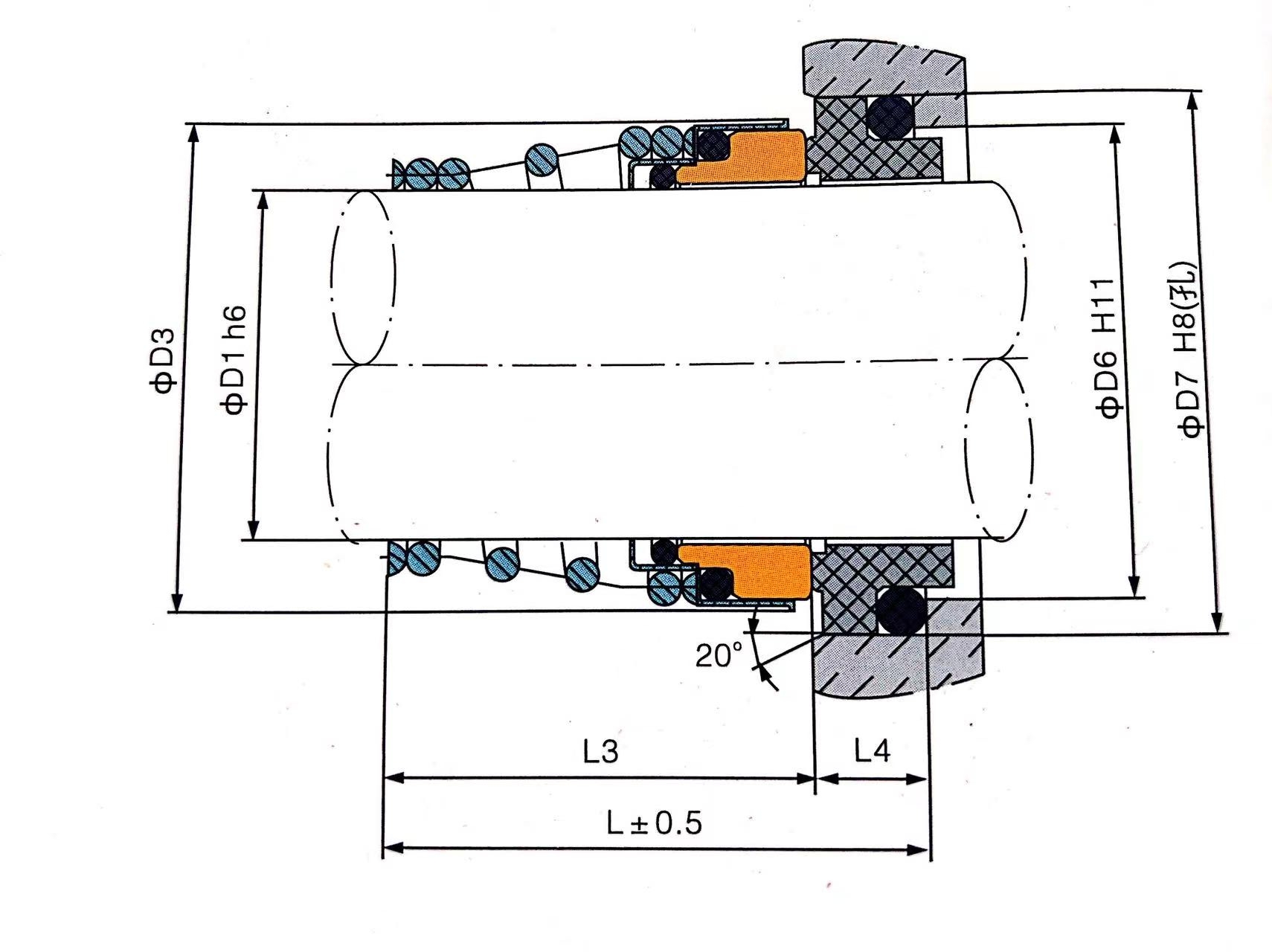

型号MODEL | D1 | D3 | D6 | D7 | L | L3 | L4 |
JD155-10 | 10 | 20.0 | 14.0 | 18.1 | 20.5 | 15 | 5.5 |
JD155-11 | 11 | 22.0 | 16.5 | 20.6 | 23.5 | 18 | 5.5 |
JD155-12 | 12 | 22.0 | 16.5 | 20.6 | 23.5 | 18 | 5.5 |
JD155-13 | 13 | 25.0 | 19.0 | 23.1 | 28.0 | 22 | 6.0 |
JD155-14 | 14 | 25.0 | 19.0 | 23.1 | 28.0 | 22 | 6.0 |
JD155-15 | 15 | 29.0 | 21.0 | 26.9 | 29.0 | 22 | 7.0 |
JD155-16 | 16 | 29.0 | 21.0 | 26.9 | 30.0 | 23 | 7.0 |
JD155-17 | 17 | 29.0 | 21.0 | 26.9 | 30.0 | 23 | 7.0 |
JD155-18 | 18 | 33.0 | 25.0 | 30.9 | 32.0 | 24 | 8.0 |
JD155-19 | 19 | 33.0 | 25.0 | 30.9 | 33.0 | 25 | 8.0 |
JD155-20 | 20 | 33.0 | 25.0 | 30.9 | 33.0 | 25 | 8.0 |
JD155-21 | 21 | 38.0 | 30.0 | 35.4 | 33.0 | 25 | 8.0 |
JD155-22 | 22 | 38.0 | 30.0 | 35.4 | 33.0 | 25 | 8.0 |
JD155-23 | 23 | 38.0 | 30.0 | 35.4 | 35.0 | 27 | 8.0 |
JD155-24 | 24 | 38.0 | 30.0 | 35.4 | 35.0 | 27 | 8.0 |
JD155-25 | 25 | 40.0 | 33.0 | 38.2 | 35.5 | 27 | 8.5 |
JD155-28 | 28 | 46.0 | 38.0 | 43.3 | 38.0 | 29 | 9.0 |
JD155-29 | 29 | 46.0 | 38.0 | 43.3 | 39.0 | 30 | 9.0 |
JD155-30 | 30 | 46.0 | 38.0 | 43.3 | 39.0 | 30 | 9.0 |
JD155-32 | 32 | 46.0 | 38.0 | 43.3 | 39.0 | 30 | 9.0 |
JD155-33 | 33 | 48.0 | 45.0 | 53.5 | 50.5 | 39 | 11.5 |
JD155-35 | 35 | 50.0 | 45.0 | 53.5 | 50.5 | 39 | 11.5 |
JD155-38 | 38 | 58.0 | 52.0 | 60.5 | 50.5 | 39 | 11.5 |
JD155-40 | 40 | 58.0 | 52.0 | 60.5 | 50.5 | 39 | 11.5 |
